Heavy cardan shaft FDILP(SWP)
We are Industry cardan shaft manufacturer in China, our industry cardan shaft range from roatation 40mm to 800mm, we also produce cardan shaft based on customers’ specail requirement. industry cardan shaft are widely used in all sorts of industry field, such as paper, chemical, rolling mills, textile, agriculture, engineering etc.
The following is Feng De heavy industry cardan shaft Assy. (splited eye yoke type FDILP series ) for reference.
Feng De heavy industry cardan shaft FDILP series range from rotation 160mm to rotation 800mm, the torque range from 10K.nm to 3300k.nm. the flange connectiong size from DIN( or SAE) 160 to 1000mm.
Every shaft connection size, Cross joint, spline and sleeve can be made according user requirement.

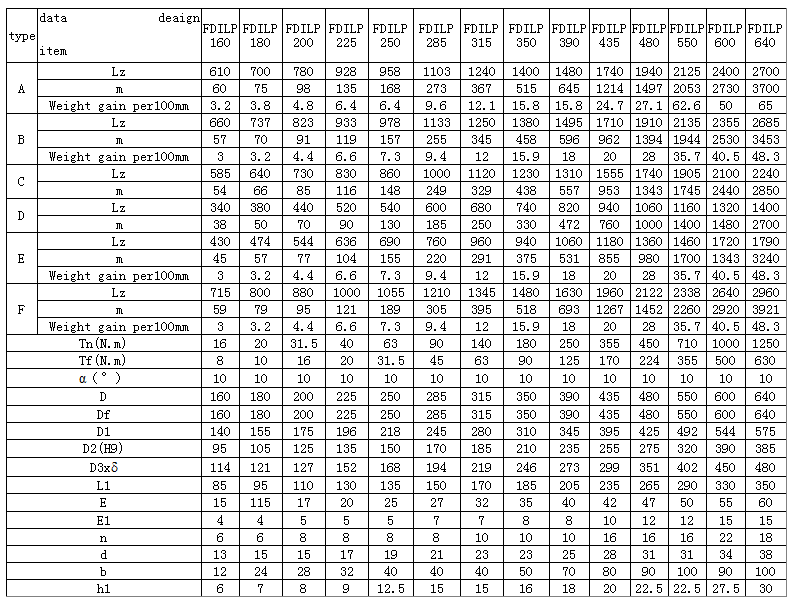

Feng De heavy industry cardans shaft FDILP series types
Lz=Standard length,or compressed length for designs with
Tn =Nominal torque；
Tf= Fatigue torque,i.e. permissible torque as determined
according to the fatigue strength under reversing load
α=Maximum deflection angle;
δ=Thickness of the tube;
mL= weight per 100mm tube;
2.Milimeters are used as measurement units except
3.Please consult us for customizations regarding length
length compensation and flange connections .
(DIN or SAE etc.)

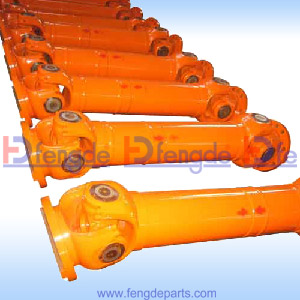

Feng De Heavy cardan shaft FDILP(SWP) products range

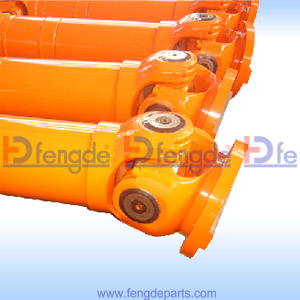

|FDILP315 and FDILP200
|FDILP series heavy types

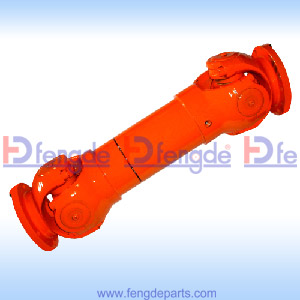

Feng De FDILP shaft with mass production
