Heavy cardan shaft FDILC(SWC)

We are Industry cardan shaft manufacturer in China, our industry cardan shaft range from roatation 40mm to 800mm, we also produce cardan shaft based on customers’ specail requirement. industry cardan shaft are widely used in all sorts of industry field, such as paper, chemical, rolling mills, textile, agriculture, engineering etc.

The following is Feng De heavy industry cardan shaft Assy. (closed eye yoke type FDILC series )  for reference.

Feng De heavy industry cardan shaft FDILC series range from rotation 180mm to rotation 800mm, the torque range from 10K.nm to 3500k.nm. the flange connectiong size from DIN( or SAE) 180 to 1000mm.

Every shaft connection size, Cross joint, spline and sleeve can be made according user requirement.

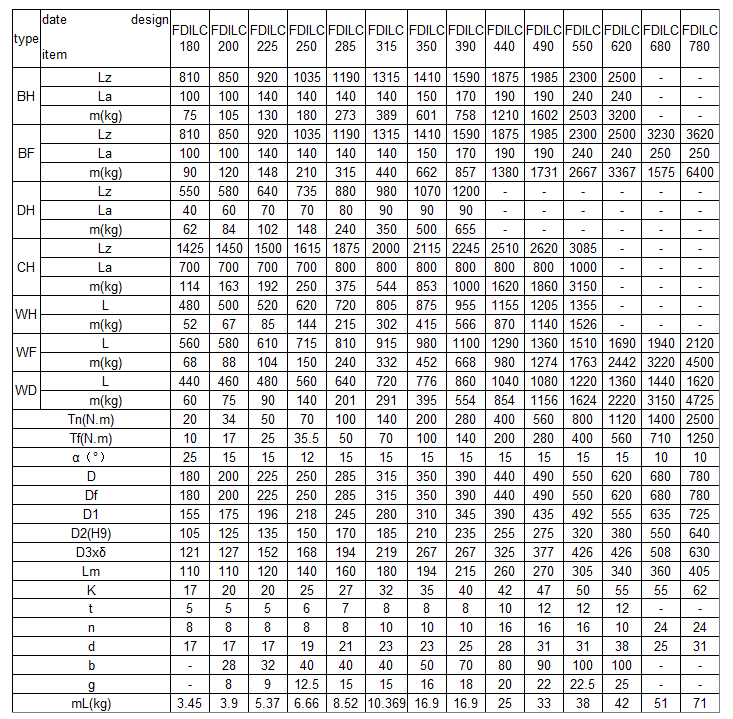

Feng De heavy industry cardans shaft FDILC series types

Lz=Standard length,or compressed length for designs with
length compensation;
La=Length compensation;
Tn =Nominal torque;
Tf= Fatigue torque,i.e. permissible torque as determined
according to the fatigue strength under reversing load
α=Maximum deflection angle;
δ=Thickness of the tube;
mL= weight per 100mm tube;
2.Milimeters are used as measurement units except
where noted;
3.Please consult us for customizations regarding length
length compensation and flange connections .
(DIN or SAE etc.)

Feng De Heavy cardan shaft FDILC(SWC) products range

FDILC Cardan shaft with long slip type

FDILC series cardan shaft heavy type

Close see of the heavy cardan shaft

Forging yokes for speical requirement

1,flange connection types

type 1: flange with face key Connection;                                                     type 2: flange without face key connection;                                                  type 3: Integral face pad connection;                                                           type 4: Hirth Serration connection

we have 4 connection flange types for customers’ selection. the details as cardan shsaft flange connection types


if you need more details, please contact us.
